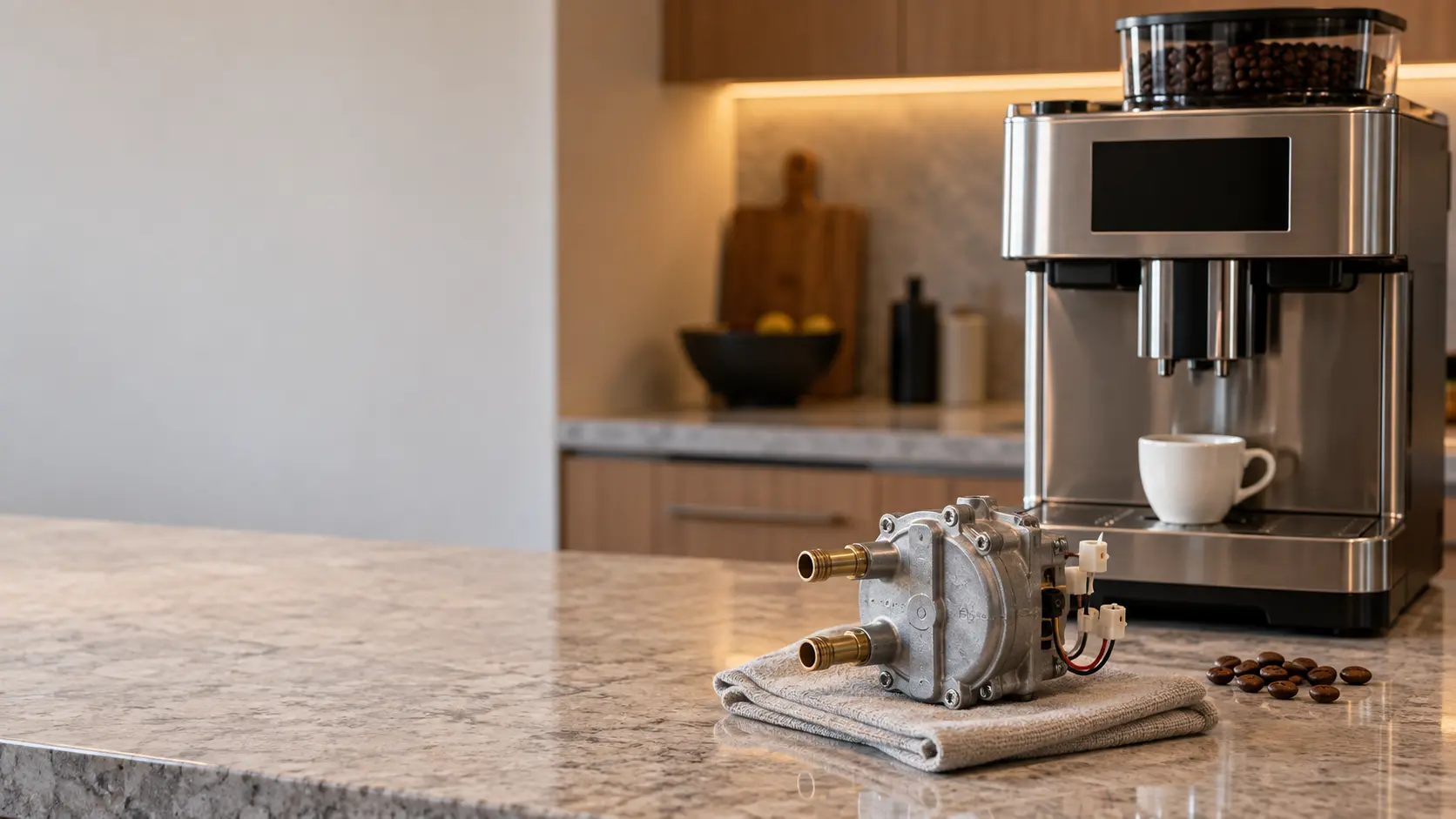

A new coffee machine thermoblock heater, a compact metal block with two short pipe stubs and wire terminals, resting on a folded cloth on a kitchen counter in a US home in front of a stainless countertop coffee machine with a plain white cup under its spout, a few coffee beans beside the cup.

Coffee Machine Heater Repair

Diagnosing and replacing the thermoblock or boiler that heats water for coffee and steam, with its sensor and thermal cutout.

(844) 551-4777

Mon–Sat, 8am–8pm

Moderate to highest cost band
5 steps on the visit
6 problems it answers

Book a visit

Three short steps, about a minute.

or call (844) 551-4777

What the coffee machine heater repair
involves.

The heater brings the water to brewing heat in the few seconds between the pump and the brew unit. Most fully automatic machines use a thermoblock, a block of aluminum or steel with a winding passage and an element cast around it; some have two, one for coffee and one for steam, and many manual machines use a small boiler instead. A sensor reports the heat to the board, which switches the element through a relay or a triac, and a thermal cutout sits on the block as a last guard against overheating. Scale is the main enemy. It narrows the passage and insulates the metal, so coffee comes out lukewarm while the element runs hotter than it should, and the cutout, a one-shot fuse on many makes, eventually opens and the machine goes dark. An element can also leak current to its body, which trips the breaker or the outlet the moment the heater switches on. Burned connectors on the heater leads give a hot electrical smell. The technician measures the element, the sensor and the cutout, checks for leakage to ground, inspects the connectors, and replaces the failed part or the whole heater, then descales the circuit so the new part is not choked by old scale.

How the visit goes

What it usually costsModerate to highest · Thermoblock or boiler, heat sensor and thermal cutout

A thermal cutout or a heat sensor on its own is a small part. A new thermoblock, or a pair of them on a machine that heats coffee and steam apart, climbs to the top, and the old scale has to be cleared from the rest of the circuit at the same time.

Answers 6 problemsCoffee From the Coffee Machine Not Hot Enough

Coffee Machine Tripping the Breaker or the GFCI Outlet · Burning or Hot Plastic Smell From a Coffee Machine · Coffee Machine Spraying Steam or Scalding Water · Coffee Machine Not Turning On at All · What a Coffee Machine Error Code or Warning Symbol Means

Comes up most onBuilt-in coffee system

Plumbed coffee system · Countertop espresso machine · Manual espresso machine

Codes that lead herePlease allow machine to cool. · Let appliance cool down · Switch off appliance · ERROR 2

Bosch BCM8450UC built-in: Please allow machine to cool.

Coffee machine heater repair,
step by step.

Descale the circuit, bring the machine up to heat and show you a cup at proper brewing heat and steam that holds.

Brew and dispense hot water or steam, measuring the heat in the cup and noting how long the machine takes to be ready.

Switch the coffee machine off, let it cool fully, then open the case or draw a built-in forward on its rails.

Measure the heating element, its sensor and the thermal cutout, and test the element for leakage to ground.

Inspect the heater leads and connectors for heat damage, and replace the cutout, sensor, element or the whole heater.

Descale the circuit, bring the machine up to heat and show you a cup at proper brewing heat and steam that holds.

The problems
it answers.

6 of them, from coffee from the coffee machine not hot enough to what a coffee machine error code or warning symbol means.

All problems

A white espresso cup with no steam rising from it sitting under the spouts of a stainless built-in coffee machine set in a tall kitchen cabinet, a small dish of coffee beans on the shelf beside the coffee machine.

Most common

Coffee From the Coffee Machine Not Hot Enough

6 causes, cheapest first

Before you call

Tell us this when you book

Whether the coffee is lukewarm, the machine never becomes ready, or it went dark all at once
Whether the breaker or a wall outlet trips when the coffee machine heats up
Whether you have noticed a hot or burning smell from the machine or its cabinet
When it was last descaled, and whether the water in your home is hard

It also answers

Moderate to highest,
on the site's scale.

Read the full cost guide

Repair	Relative cost
Brew unit seals, lubrication, drive gear or a complete brew unit
Burrs, grinder motor, gearbox or dosing sensor
Vibration or gear pump, flowmeter, check valves and hoses
Thermoblock or boiler, heat sensor and thermal cutout	moderate to highest
Milk tube, frother, O-rings, milk valve and steam path
Full descale, water hardness set-up and a fresh filter
Tank seat valve and sensor, inlet valve, supply line or drain hose
Power board, control board, display or touch panel
O-rings, gaskets, hose clips and the brew unit drain valve

Where it
comes up most.

Most bookings: Built-in coffee system, Plumbed coffee system, Countertop espresso machine, Manual espresso machine.

All coffee machine types

Codes that lead here

All 8 codes that lead here

Often the same visit

A stainless built-in coffee machine set flush in a tall wooden kitchen cabinet at eye level in a US home kitchen, a plain white cup standing under the coffee machine's twin spouts with a thin stream of espresso falling into it, a small dish of coffee beans on the ledge beside it, the coffee machine display dark or showing only plain digits, the cabinet doors around it closed.

Built-in coffee system

A built-in stainless coffee machine drawn a little forward out of a tall kitchen cabinet on its rails in a US home kitchen, a thin braided water line and a small shutoff valve visible behind the coffee machine, a plain white cup under the coffee machine's spouts and a scoop of coffee beans on the counter below.

Plumbed coffee system

A stainless fully automatic bean-to-cup coffee machine standing on a pale stone kitchen counter in a US home, a plain white cup under the coffee machine's spout with fresh crema on the espresso, whole coffee beans visible through the smoked lid of the hopper on top, a small glass jug of milk beside the coffee machine, a plain dark display, soft morning light.

Countertop espresso machine

The makes
we see it on.

12 makes on this site, and the coffee machine heater repair on any of them. Each mark opens that make's own page.

All 12 brands

Coffee machine heater repair,
where we come out.

The kitchen, the climate and the building all change how the coffee machine heater repair goes. These notes are about that, metro by metro.

All service areas

Tampa BayFL · 31 areas

Tampa Bay's blend of groundwater and treated water still leaves scale in a thermoblock, and coffee that comes out lukewarm is often heat trapped behind that layer; the repair descales or replaces the thermoblock and tests its sensor.

OrlandoFL · 30 areas

Orlando's hard aquifer water scales a heater faster than most owners expect, and a machine that takes longer to warm up or trips its thermal fuse is repaired with a new element or thermoblock and a full descale.

Miami / South FloridaFL · 47 areas

In South Florida a heater's thermal fuse may blow after a storm surge or after a scaled thermoblock overheats, leaving the machine dead or cold; the repair finds which of the two caused it before the fuse is replaced.

New York MetroNY · 75 areas

Soft reservoir water spares New York heaters from heavy scale, so coffee that is not hot here more often points to the temperature sensor or its connector than to minerals; both the sensor and the element are measured before a part is ordered.

HoustonTX · 36 areas

Houston outages end with surges that reach a coffee machine's heater circuit, and a machine that powers up but never warms is checked for a blown thermal fuse, a damaged switching part on the board or an open element.

ChicagoIL · 50 areas

A coffee machine in a cold Chicagoland kitchen needs longer to come up to temperature on a winter morning, but one that never gets there has a failing heater or sensor; the repair tests both and checks the cup-warming plate as well.

Los AngelesCA · 95 areas

Colorado River water scales a Los Angeles thermoblock steadily, and a machine that brews one cup hot and the next one warm is losing heat transfer; the repair descales or replaces the thermoblock and checks the temperature sensor.

San DiegoCA · 31 areas

A San Diego thermoblock loses heat to scale from the hard imported water, and a steam wand that runs weak while the heater is warm has the same scale in its steam path; the repair clears or replaces the heater and tests the steam valve.

San Francisco Bay AreaCA · 74 areas

Bay Area espresso fans often set the brew temperature at its highest for light roasts, and a heater run at that setting for years may start tripping its safety cutout; the repair replaces the element or the thermostat.

A family sharing morning coffee at a built-in coffee machine in a bright kitchen. — For the heart of your home.

Questions about
the coffee machine heater repair.

Why is the coffee from my machine only lukewarm?

Espresso cools fast in a cold cup, so warm the cup first and try again. If it is still lukewarm, a scaled heater is the most common cause, followed by a heat sensor that reads wrong or a heat setting that was lowered. A descale is worth running; if the coffee stays cool, the heater is tested.

My coffee machine trips the breaker as soon as it heats. Can I keep resetting it?

Please do not. A breaker that trips when the heater switches on often means the element is leaking current to its metal body. Unplug the machine or leave the breaker off, and book a visit; resetting it again and again is how a small repair becomes a burned connector.

What is a thermal cutout, and why did it leave my machine dead?

It is a small safety part on the heater that opens if the metal ever gets too hot, cutting power so nothing burns. On many makes it does not reset. When it opens, the question is why: a scaled heater or a sensor that stopped reading are checked, so the new cutout does not open again.
